MP Filtri Bell Housings – Electric Motor X DIN Pump
$46.80 $401.10Price range: $51.48$46.80 through $441.21$401.10 INC GSTEX GST
These Bell Housings are used for connecting electric motors to hydraulic gear pumps with DIN mounts. Excellent for all commercial and industrial hydraulic power unit applications or transfer pumps.
Bell Housing Material: Pressure die cast aluminium
Centre ring/washer Material: Galvanized Steel

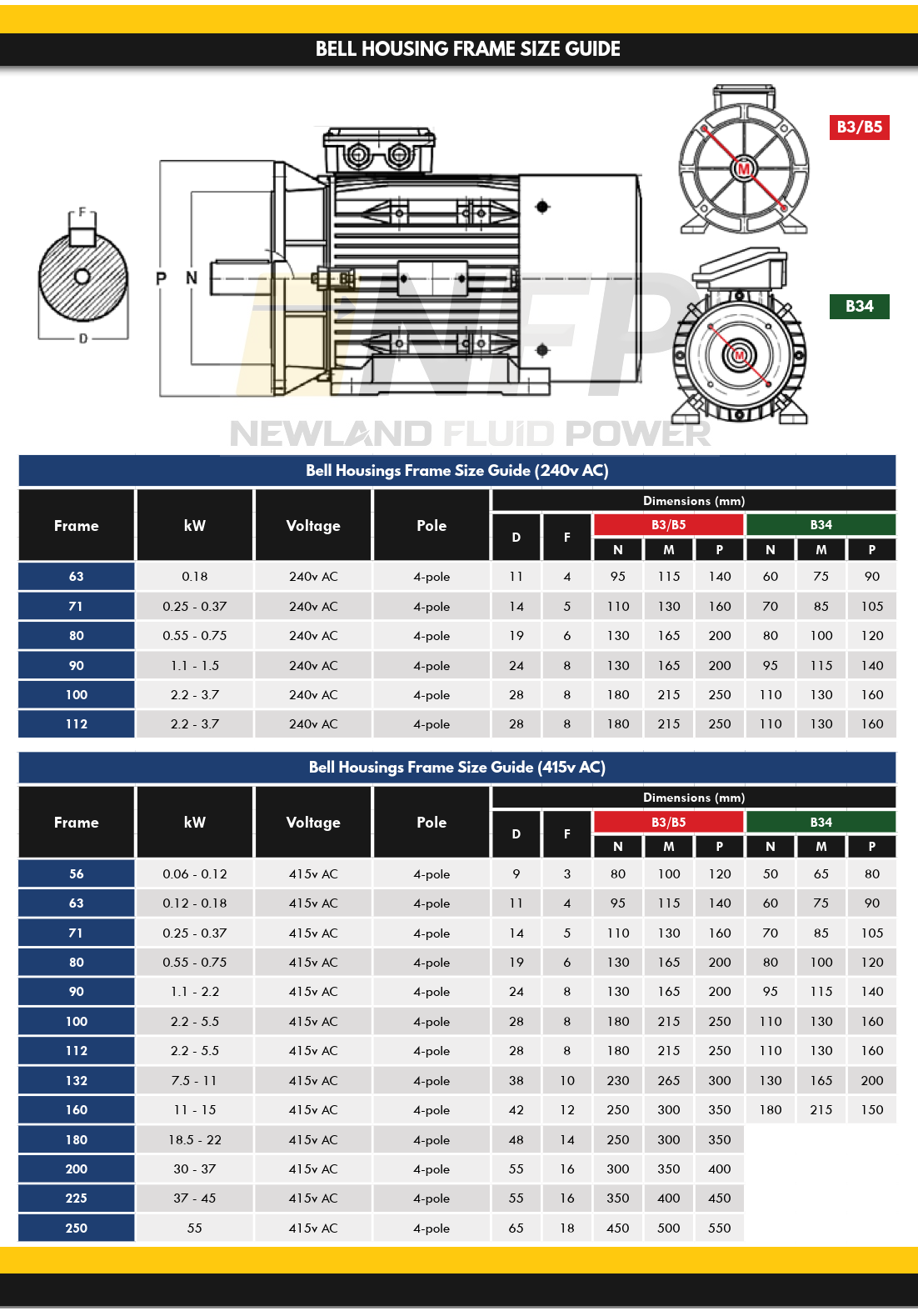

Electric Motor Frame Sizes and Bellhousing Dimensions can be found in the pictures.
Group 05 DIN Pumps
| Part # | Frame Size | Flange Type | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (Mm) | H2 (mm) | F | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMG105MFS05M4E | D71 | B34 | 70 | 85 | 105 | 74 | 67 | 9 | n/a | 7 |
| LMG120MFS05M4E | D80 | B34 | 80 | 100 | 120 | 84 | 87 | 9 | n/a | 7 |
| LMG141MFS05M4E | D63 | B3/B5 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG141MFS05M4E | D90 | B34 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG160MFS05M4S | D71 | B3/B5 | 110 | 130 | 160 | 110 | 70 | 15 | M8 | 9 |
| LMG200MFS05M4S | D80-90 | B3/B5 | 130 | 165 | 200 | 135 | 87 | 18 | M10 | 11 |
Group 1 DIN Pumps – 25.4mm Spigot
| Part # | Frame Size | Flange Type | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (Mm) | H2 (mm) | F | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMG105MFS1004E | D71 | B34 | 70 | 85 | 105 | 74 | 67 | 9 | n/a | 7 |
| LMG120MFS1004E | D80 | B34 | 80 | 100 | 120 | 84 | 87 | 9 | n/a | 7 |
| LMG141MFS1004E | D63 | B3/B5 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG141MFS1004E | D90 | B34 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG160MFS1004E | D71 | B3/B5 | 110 | 130 | 160 | 110 | 70 | 15 | M8 | 9 |
| LMG200MFS1004E | D80-90 | B3/B5 | 130 | 165 | 200 | 135 | 87 | 18 | M10 | 11 |
| LMG250MFS1004S | D100-112 | B3/B5 | 180 | 215 | 250 | 185 | 105 | 22 | M12 | 14 |
Group 1 DIN Pumps – 30.3mm Spigot
| Part # | Frame Size | Flange Type | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (Mm) | H2 (mm) | F | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMG105MFS1M04E | D71 | B34 | 70 | 85 | 105 | 74 | 67 | 9 | n/a | 7 |
| LMG120MFS1M04E | D80 | B34 | 80 | 100 | 120 | 84 | 87 | 9 | n/a | 7 |
| LMG141MFS1M04E | D63 | B3/B5 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG141MFS1M04E | D90 | B34 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG161MFS1M04E | D71 | B3/B5 | 110 | 130 | 160 | 110 | 105 | 15 | M8 | 9 |
Group 2 DIN Pumps
| Part # | Frame Size | Flange Type | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (Mm) | H2 (mm) | F | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMG121MFS2004E | D80 | B34 | 80 | 100 | 120 | 84 | 95 | 12 | n/a | 7 |
| LMG141MFS2004E | D63 | B3/B5 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG141MFS2004E | D90 | B34 | 95 | 115 | 140 | 100 | 95 | 13 | M8 | 9 |
| LMG161MFS2004E | D71 | B3/B5 | 110 | 130 | 160 | 110 | 105 | 15 | M8 | 9 |
| LMG201MFS2004E | D80-90 | B3/B5 | 130 | 165 | 200 | 135 | 95 | 18 | M10 | 11 |
| LMG250MFS2004E | D100-112 | B3/B5 | 180 | 215 | 250 | 185 | 105 | 22 | M12 | 14 |
| LMG300MFS2004E | D132 | B3/B5 | 230 | 265 | 300 | 235 | 145 | 23 | M12 | 14 |
| LMG351MFS2004E | D160-180 | B3/B5 | 250 | 300 | 350 | 255 | 179 | 31 | M16 | 18 |
| LMG400MFS2004E | D200 | B3/B5 | 300 | 350 | 399 | 305 | 201 | 31 | M16 | 18 |
Group 3 DIN Pumps
| Part # | Frame Size | Flange Type | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (Mm) | H2 (mm) | F | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMG251MFS3004E | D100-112 | B3/B5 | 180 | 215 | 250 | 185 | 126 | 22 | M12 | 14 |
| LMG300MFS3M04E | D132 | B3/B5 | 230 | 265 | 300 | 235 | 145 | 23 | M12 | 14 |
| LMG351MFS3M04E | D160-180 | B3/B5 | 250 | 300 | 350 | 255 | 179 | 31 | M16 | 18 |
| LMG400MFS3004E | D200 | B3/B5 | 300 | 350 | 399 | 305 | 201 | 31 | M16 | 18 |
WARNING – IMPROPER USE OR SELECTION OF THE PRODUCTS/EQUIPMENT OR SYSTEMS DESCRIBED CAN CAUSE PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. SAFETY PROCEDURES MUST BE APPLIED PRIOR TO INSTALLATION, COMMISIONING AND/OR OPERATION OF EQUIPMENT AND MACHINERY.
| Weight | N/A |
|---|---|
| Frame and Flange Size | D63 B3/B5, D71 – B34, D71 B3/B5, D80 B34, D90 B34, D80-90 B3/B5, D100-112 B3/B5, D132 B3/B5, D160-180 B3/B5, D200 B3/B5 |
| Pump Size | DIN GRP05 – 22mm Spigot, DIN GRP1 – 25.4mm Spigot, DIN GRP1 – 30.3mm Spigot, DIN GRP2 – 36.5mm Spigot, DIN GRP3 – 50.8mm Spigot |
